微生物检测
Microbial Test
无菌检查系统
Sterility Test System
隔离器内置集菌仪
Embed pump for Isolator

隔离器内置集菌仪
型号:STERT86


该款集菌仪主要用于隔离器舱体内进行无菌检查实验。可配套多种型号规格的集菌培养器使用。

整机设计为一体集成式,上表面部件完全密封于舱体内,下表面暴露于舱体外则主要为电器部件。

主要组成部件:主机,蠕动泵,显示屏,样品放置篮,排液槽,无级调速旋钮,脚踏开关。

技术特点

1.主机外壳采用304不锈钢,便于清洁维护;
2.排液槽同时可以外挂和台面放置使用,外挂时可大于180度角选择,满足不同操作习惯的实验人员需求;
3.排液槽托盘和底槽可拆分设计。底槽一体加工成型大内弧角的设计,排液流畅,方便清洁消毒,避免污染。排液槽可整个取下,拆解做清洗和灭菌;
4.手掌式造型的样品放置篮,便于样品瓶、培养基瓶的放置,它顶部设有软袋挂钩,提升软袋高度,避免软袋触碰台面;
5.样品放置篮悬杆可360度摆动结合上下移动,可按实际需求调整位置;
6.大屏幕显示屏,显示当前速度及时间信息。屏幕显示杆可适当左右调整位置;
7.配置脚踏开关,方便实验人员操作。

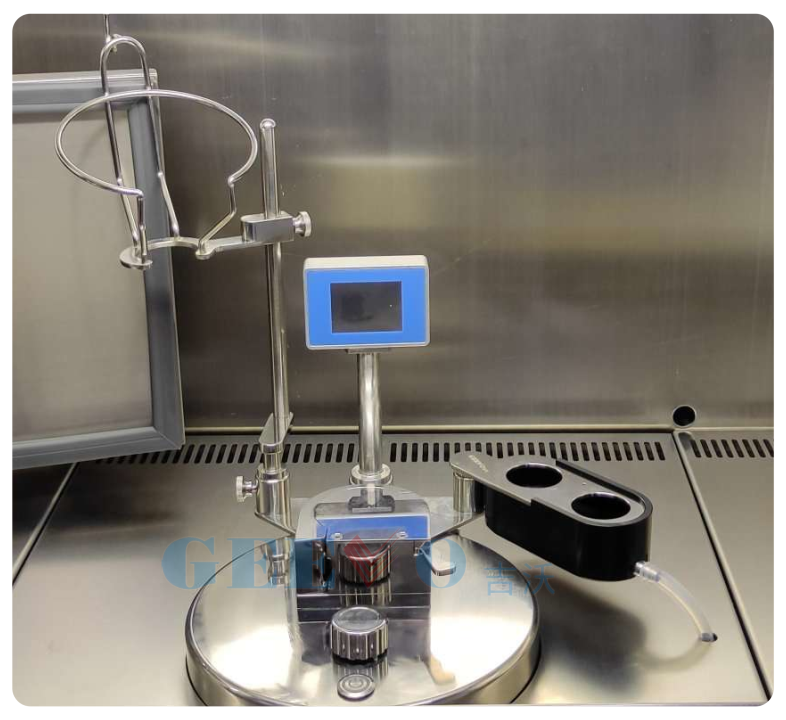

Embed Sterility test pump

STERT86

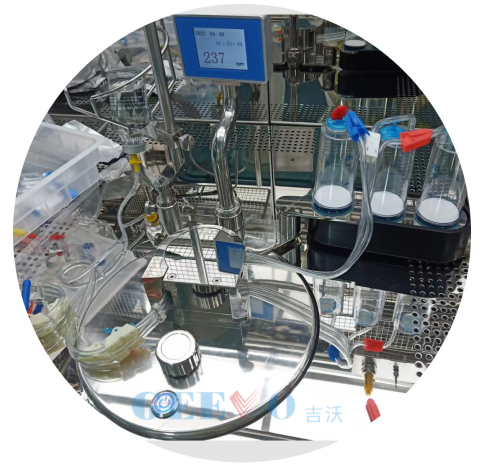

This type is mainly applied for Aseptic Isolator. It can work with types of canister and various of testing samples.

It is designed to be integrated and the top part is sealed into the chamber of isolator for sterility test, and the bottom is exposed from

isolator and be electricity parts.

Main parts: Pump device, pump head, screen, bottle holder, drain tray, speed control and footswitch.

Technical feature
1. SS304 material, easy to clean and disinfection.
2. Drain tray can be hung on or lay on the table.
    When hung on, more than 180 degree angle for choice to meet the demand for different operation habit of operator.
3. The drain tray can be disassemble to be drain tray container and support.
    Drain tray container is designed to be integral whole processing molding with big internal arc angle, good for liquid out and clean & disinfection.
4. Palm design bottle holder for put bottles. its hook are for soft pouch.
5. Bottle holder can 360 degree swing and up and down to adjust suitable position.
6. Screen present current speed and time & date.
7. Footswitch can help operator control the operation.
