αβ阀(分体式蝶阀)
αβ Valve (Split Butterfly Valve)
配件、耗材
Parts and Consumables
多功能物料转运车
Multi-function Material Carrier



功能物料转运车


多功能物料转运车组合了物料的垂直升降、可360度翻转及转运三大功能,主要是洁净区等高要求的区域使用。 转运车在垂直升降和360度旋转时微调高度和角度,满足精准对接。尤其是与αβ阀配合使用,使物料转移更加快捷,提供工作效率,物料转移更加安全。






三大功能
功能一:上下垂直升降物料——蜗轮升降,手感轻便,可微调高度,并有自动锁止功能。
功能二:垂直360度翻转物料——蜗轮旋转,顺时针逆时针全角度翻转,可微调角度,确保精准对接。
功能三:全方位推移小车——4个万向脚轮,可在较小空间内移动和原地旋转。

技术特点
—主体材料:304不锈钢
—带刹车万向脚轮,静音设计
—采用蜗轮蜗杆传动技术,升降和翻转进程微调、过程自锁功能
—物料转运重量≤150Kg
—拓展改造后,可作为小型叉车使用
—钢丝绳升降,对接时可起到缓冲作用

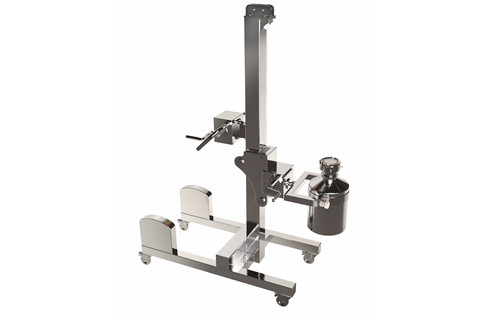

Multi-function Material Carrier


Multi-function material carrier have three functions: Material vertical lifting, Rollover at 360 degree and transsport. Mainly applied in clean room and some high requirement area. Only fine adjust the height and angle when carrier lift vertically and rotate at 360 degree to connect exactly. Especially working with αβ valve, that will be easy, fast and safe for material transfer.

Three Function
Function 1: Material vertical lifting- Adopts worm gear lift for easy control. Can be fine adjustment for the height with self-lock action
Function 2: Material vertical rollover at 360 degree- worm gear control, all angle, can be fine adjustment for exact connect.
Function 3: Moveable carrier -Four universal caster wheel, can move at small room or rotate in place.

Feature
—Material: SS304
—Universal caster wheel with brakes, mute design
—Adopts worm gear and worm drive technology. Lift and rollover process is fine adjustment, process self-lock function
—Weight of material transfer≤150Kg
—Can be small forklift after upgrade
—Adopts wirerope lift, have buffer action during docking.
