微生物检测
Microbial Test
配件、耗材
Parts and Consumables

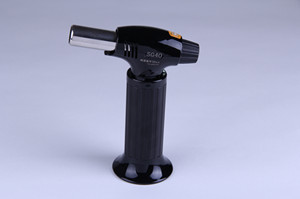

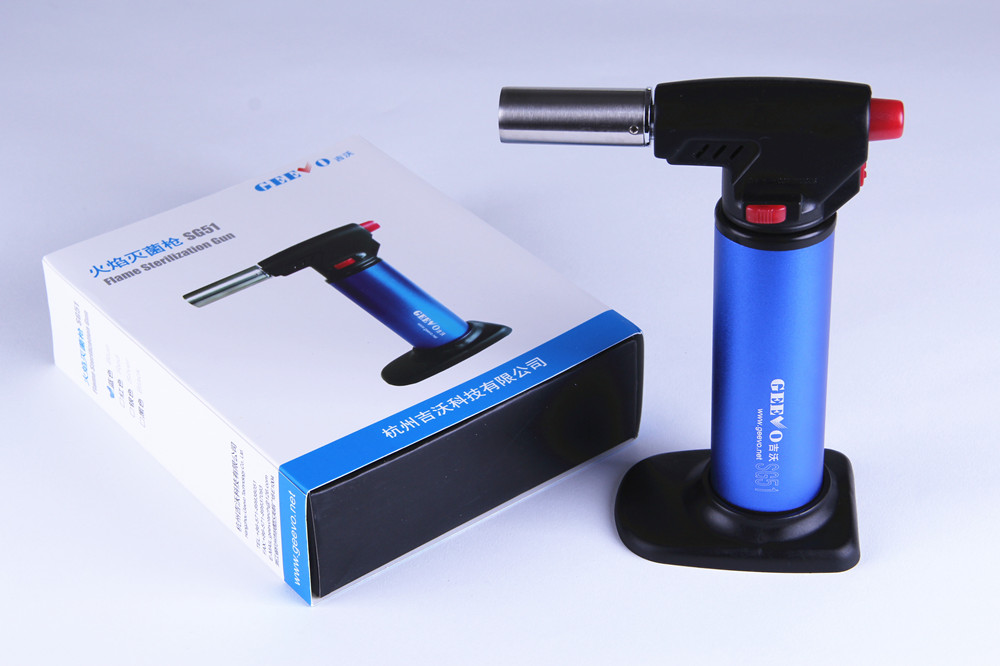

SG40、SG51 火焰灭菌枪
SG40, SG51 Flame Sterilization Tool







微生物过滤系统专用工具-火焰灭菌枪

SG40, SG51



    用于微生物实验时的简易灭菌设备,灭菌快速,安全使用。气体用完时可自行加气,灭菌枪有加气自动调节功能,即当加气量达到安全使用量后会自动漏气。


技术特点
1.自动熄灭功能: 点火燃烧后,放开电子夹,火焰自动熄灭,避免误操作带来的危险;
2.可选持续燃烧: 定位锁设置可根据操作需要, 选择持续燃烧;
3.双重保护设计: 拉锁与电子夹配合使用, 有效防止误点火, 提高使用安全性;
4.火焰大小可调:根据使用要求调整合适火焰, 火焰长度为20mm至65mm;
5.可补充燃烧气:灭菌枪内贮气罐加满可供间断燃烧总时间为20-40分钟(每 次滤头灭菌仅需4-5秒钟)。


SG51技术参数
重量:240g
整机气容量:18g(安全燃烧容量)
整机内压:0.35±0.05MPa
气体可供间断燃烧时间:20-40分钟
火焰最高温度:1200℃
火焰的变化:在室温22℃时火苗最小20mm,最大65mm
长 x宽 x  高 :130mm x 66mm x 165mm


加气方法
1.将打火机倒置,进气阀向上;
2.充气瓶的气嘴对准气阀,连续按压并保持几秒钟;
3.在加气的时候注意室内要流通,远离火源;
4.加气时不得点火,注意必须在加气阀及手上的液体完全挥发后方可点火。

气体: 丁烷。








Flame Sterilization Tool
SG40, SG51


Smart flame sterilization tool for lab microbial test. Fast and safe. It has self-protect function.



Feature
a. Auto extinguish fire function: Release the trigger when burning,  fire will be extinguish atumatically. That will avoid the danger when misoperation.
b. Durative burning: Positioning lock can keep it burning for long time.
c. Double Protection design: Use pull lock and trigger meanwhile can avoid Ignition by mistake, keep it safe.
d. Adjustable flame length: Adjust it according the demand, the length of flame is from 20mm to 65mm.
e. Refilling gas: When it is full, it can keep intermittent burning for 20- 40minutes(sterilize the filter head only takes 4-5seconds).


SG51 Technical Parameter

Weight: 240g
Capacity: 18g (safe)
Inner Pressure: 0.35±0.05MPa
Durative burning time: 20-40minutes
Max. flame temperature: 1200℃
The height of flame: Min.20mm, max.65mm(22℃)
L x W x  H: 130mm x 66mm x 165mm


How to Refill

A. Put upside down the flame gun and make the gas input valve up.
B. Put the nozzle into gas valve, press it for some seconds.
C. Away from fire when refilling.
D. Attention: It can only be ignited when the liquid in the valve or hand have been volatilized out. Do not ignite when filling.



Gas: butane gas
