Membrane Filtration System (Patent)

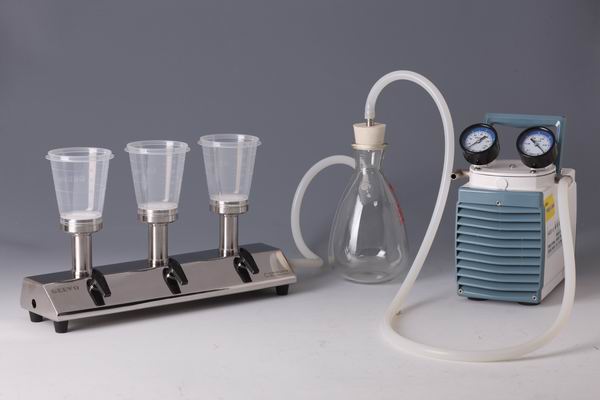

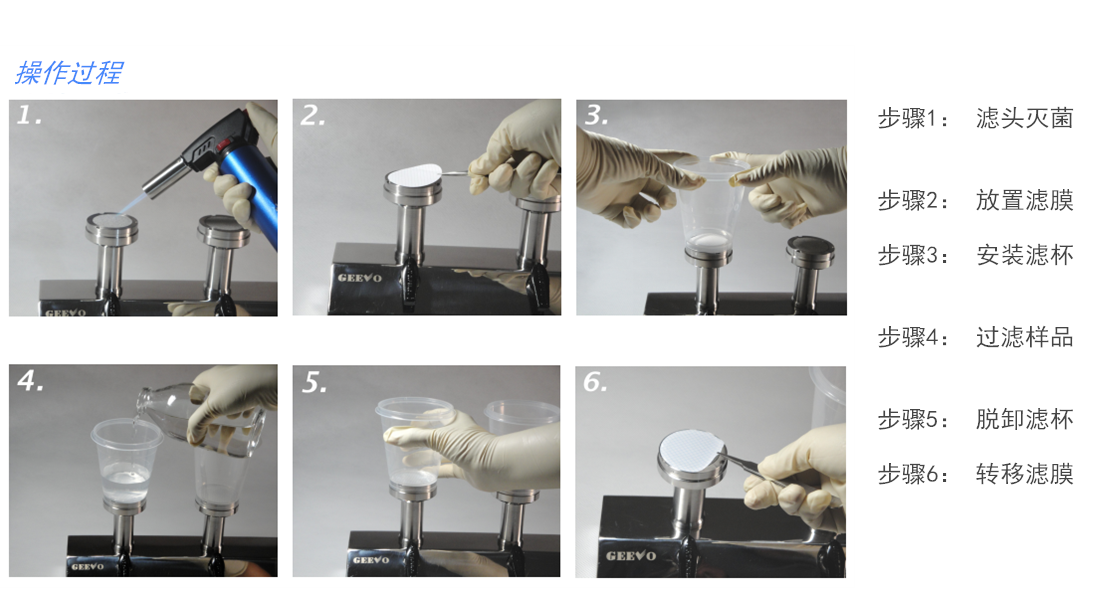

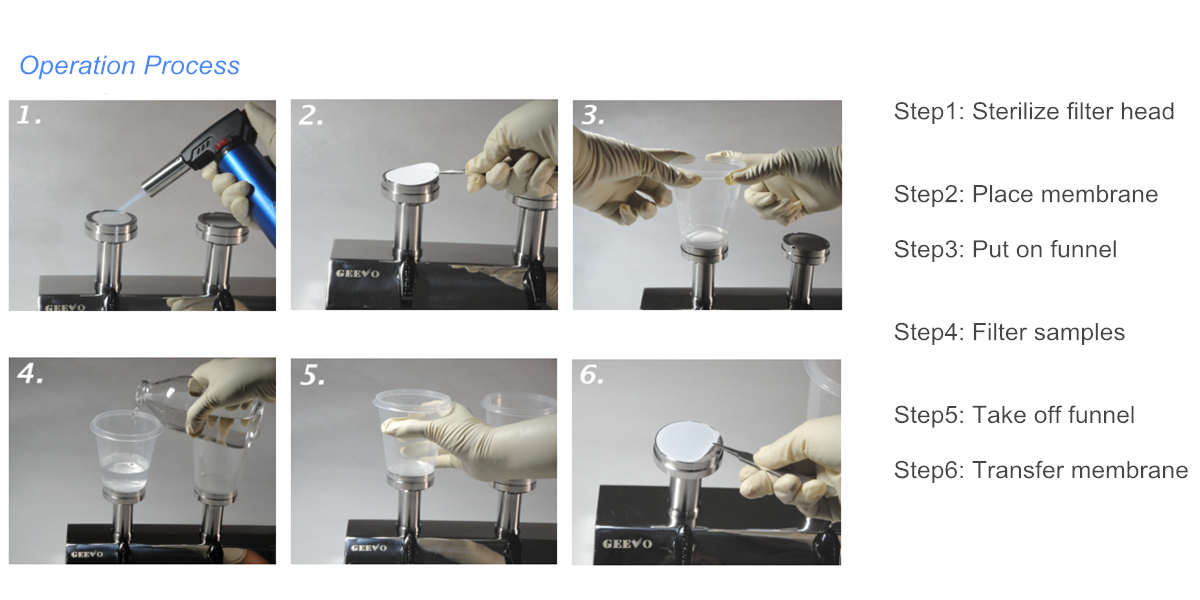

Microbial Filtration applies to microbial test or other solutions which need to filter. It is made up of filtration device (filtration support +funnel) and vacuum pump. During using this product, place the membrane on the filter head, fixed and sealed it by pressing funnel to form an integrated filtration device. Based on the principle of membrane filtration, separate the testing solution from microbe (or required particle material), and withholding the microbe or particle material on the membrane, transfer membrane. If do microbial limit test, culture it under the specified conditions, then colony count and observe.
By using the membrane filtration, the interference from antibacterial substances can be effectively eliminated in samples, and sampling amount can also be increased, leading to more accurate and reliable results compared with the plate method.
- Filter head is detachable, easy to sterilize key parts.
- Multi-head support can be controlled individually.
- Much bigger filtration area and much fast filtration rate.
- Accept 47mm and 50mm membrane.
- Filter head accept flame fast sterilization.
- Special groove in the filter head, easy to place /take off membrane.
- Filtration support can be moist heat sterilization.
Volume of PP Funnel: 300ml
Scale of Funnel: 50, 100, 150, 200, 250ml with annular scale line
Membrane Diameter: 47mm and 50mm
Effective filtration area: 12.5 cm2
W x H: 105mmx135mm
Material of Funnel: PP and Stainless Steel
Material of Support: Stainless Steel
Filter head: Detachable, screw it with holder
Filter head: 3-place
SS funnel: SS100(100ml), SS250(300ml), SS500(500ml)

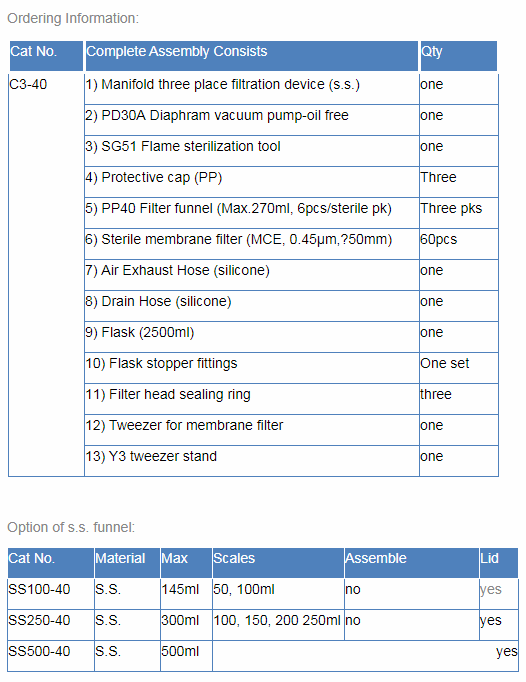

Option: pp funnel, ss funnel(100ml, 300ml, 500ml), lid of ss250-40, ss250-40 assemble, diaphragm vacuum pump, sterile membrane, flame sterilization tool, tweezer, tweezer stand, flask fittings
Diaphragm Vacuum Pump
Built-in Pressure and vacuum Gauge
Air exhaust Speed: 30L/min
Ultimate pressure vacuum:≥0.08Mpa
a. Disease Control: Microbiological test for legionella,the public water and food.
b. Pharmaceutical Industries: Microbial limit test and chemical analysis for pharmaceutical water, drugs and raw material.
c. Food & Beverage: Bottled water, water in container, beer, beverage and raw material of liquid applied in production process.
d. Filtration treatment in chemical, cosmetic, electron industries.
e. Quality supervision inspection.
f. Water plant, water supply and sewerage.
Meet international detection requirement on drink water and mineral water.
Meet international each pharmacopeias and rule requirements of related institution
